Tracks for Vehicles

Application Areas

This belt is used as a vehicle track, and gives good ground contact area, good stair-climbing capability, highest track flexibility, and a smooth relatively vibration-free vehicle drive. These features lend it to other applications, for example conveying. Other versions can also be produced.

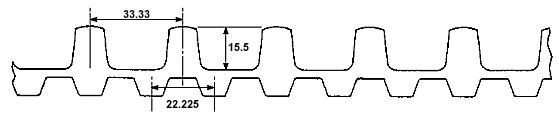

Track Dimensional Details

Number of XH Teeth Pitch Length (mm) Width (mm)
66 1467 50
96 2134 50
102 2267 75
204 4543 100

Number of teeth and lengths are standard, but any widths up to 250mm can be provided. We are also engaged in a programme of increasing markedly the number of lengths available, and as our maximum length will be 5.3m, it is possible that we already manufacture a length to suit your needs.
